পণ্যের বিবরণ:
প্রদান:
|
| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female / Male | Cable color: | Orange / Purple / Violet |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | OM1 / OM2/ OM3 / OM4 |
| LC Connector Type: | Duplex / Simplex / Uniboot | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| বিশেষভাবে তুলে ধরা: | OM4 MPO MTP,OM2 MPO MTP,OM1 MPO MTP |
||
Mutilmode Duplex Simplex OM1 OM2 OM4 MPO MTP

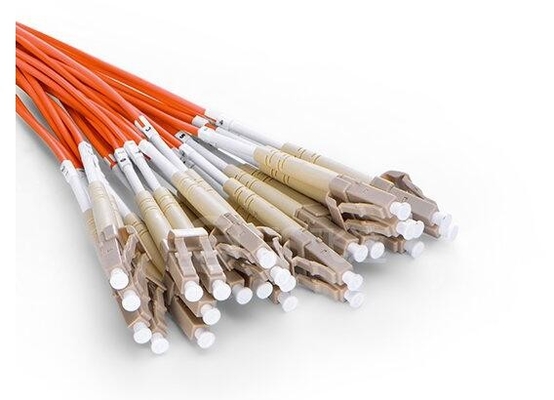

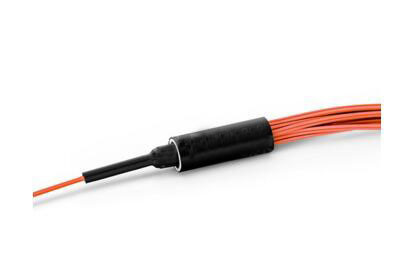

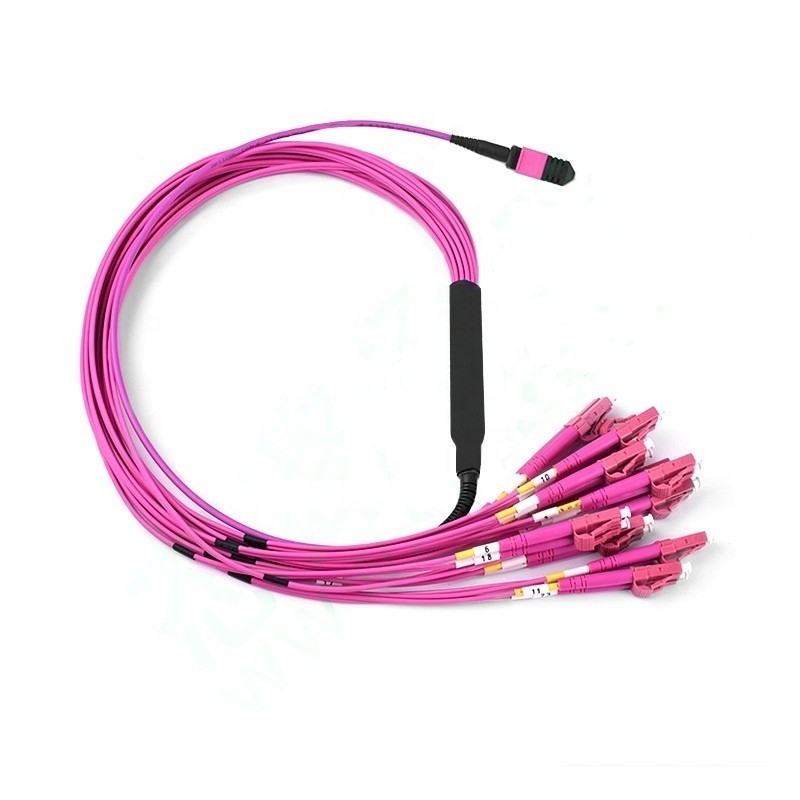

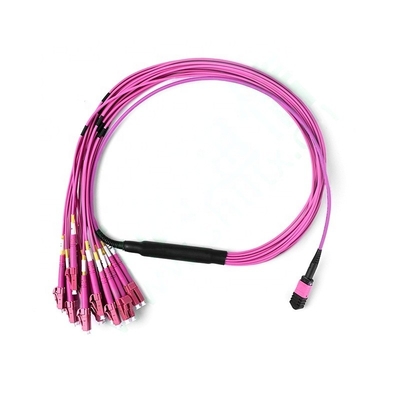

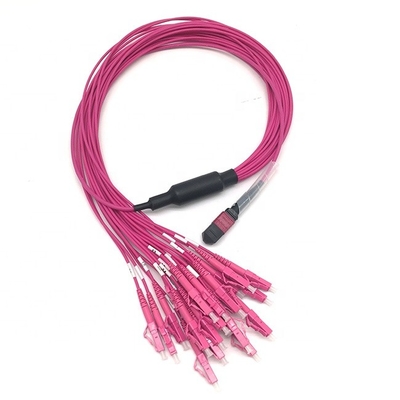

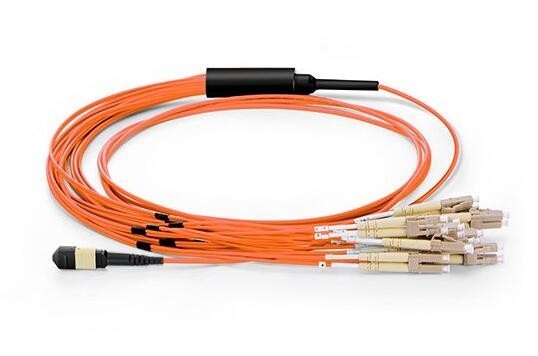

Mutilmode 24core MPO-LC Duplex Simplex Uniboot Breakout Patch Cord OM1 OM2 OM4
Description:
CY COM Develops and provides full range of fiber optic patch cords, jumpers pigtails, welcome to check us for more.
Professional MTP MPO workers, adanved equipment imported from Janpan and Germany, we produce high standard quality MTP MPO products.
The MPO Cable is designed for 40G (12 cores) and 100G (24 cores) optics direct connection and high-density data center applications. FIBERCAN Fiber optic cable meets RoHS and UL compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.
| Product Name : |
|
| Model | MPO/F-2-3-4/5-6-78 |
| 1. A connector | MPO female |
| 2. B end connector | LC UPC |
| 3. Fiber counts | 24 cores |
| 4. Fanout length | 0.15 (0.2, 0.3, 0.5m, etc..) |
| 5. Fiber Type | OM1 OM2 OM3 OM4 |
| 6. Cable Type | 3.3mm O.D. multi-fiber mini micro cable |
| 7. Cable Jacket | LSZH |
| 8. Cable length | 1m, (2m,3m,5m etc..available) |
| Other further info. | Fiber barnds, Cable purpose and tensile strength. |
Features:
1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;
2; Different size & color boot option;
3; Low insertion loss; High return loss;
4; 100% interferometer measurement available;
Specification:
| Parameter | Unit | SM standard | SM low loss | MM standard | MM low loss | |
| Insertion | Typical | dB | 0.35 | 0.2 | 0.35 | 0.2 |
| Max | 0.75 | 0.35 | 0.65 | 0.35 | ||
| Return loss | dB | APC≥50 | ≥25 | ≥35 | ||
| PC≥40 | ||||||
| Repeatability | dB | ≤0.1 | ||||
| Interchangeability | dB | ≤0.3(Connector randomly) | ||||
| Durability | dB | ≤0.3 | ≤0.3(change 1000 matings) | |||
| Vibration | dB | ≤0.3(10~55Hz) | ||||
| Operating temperature | ℃ | -25~+70 | ||||
Application:
Production Process:
