| Product Name:: | CWDM DWDM SFP module for gpon epon olt | Model:: | CWDM DWDM SFP transceiver |
|---|---|---|---|
| Transmission Distance:: | 40KM 80KM 120KM etc | Wavelength:: | 850nm 1310nm 1490nm 1550nm 1610nm |
| Compatible:: | Cisco, Hp, Huawei Ect. | Fiber Type:: | singlmode mutilmode |
| বিশেষভাবে তুলে ধরা: | CWDM SFP Optical Transceiver,CWDM DWDM Sfp+ Transceiver,CWDM DWDM Sfp Transceiver |
||
Module transceiver feature
155Mbps to 2.67Gbps
Support transmission distance up to 120km
18 wavelength CWDM 1270-1610nm avaiable
DWDM 100Ghz ITU grid C band available
Single 3.3V DC input
Low power dissipation
DDMI function
Hot-pluggable
RoHS compliant and Lead Free
Operating temperature: 0°C to +70°C
Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Specification
| 155Mb/s | 80km | 1270~1610nm | CWDM DFB | SM | -5~ 0dBm | <-36dBm | 0~70℃ |
| 1.25Gb/s | 40km | 1270~1610nm | CWDM DFB | SM | -5~ 0dBm | <-24dBm | 0~70℃ |
| 1.25Gb/s | 80km | 1270~1610nm | CWDM DFB | SM | 0~+5dBm | <-24dBm | 0~70℃ |
| 1.25Gb/s | 120km | 1270~1610nm | CWDM+APD | SM | 0~+5dBm | <-32dBm | 0~70℃ |
| 2.5Gb/s | 40km | 1270~1610nm | CWDM DFB | SM | 0~+5dBm | <-18dBm | 0~70℃ |
| 2.5Gb/s | 80km | 1270~1610nm | CWDM+APD | SM | 0~+5dBm | <-28dBm | 0~70℃ |
| 1.25Gb/s | 80km | DWDM | DWDM+PD | SM | 0~+5dBm | <-24dBm | 0~70℃ |
| 1.25Gb/s | 120km | DWDM | DWDM+APD | SM | 0~+5dBm | <-32dBm | 0~70℃ |
| 2.5Gb/s | 40km | DWDM | DWDM+PD | SM | 0~+5dBm | <-18dBm | 0~70℃ |
| 2.5Gb/s | 80km | DWDM | DWDM+APD | SM | 0~+5dBm | <-28dBm | 0~70℃ |
| 2.5Gb/s | 120km | DWDM | DWDM+APD | SM | > +3dBm | <-30dBm | 0~70℃ |

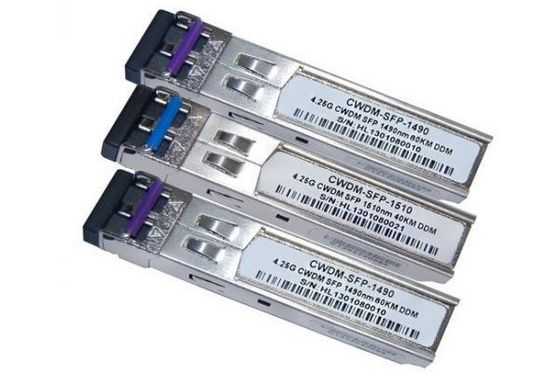

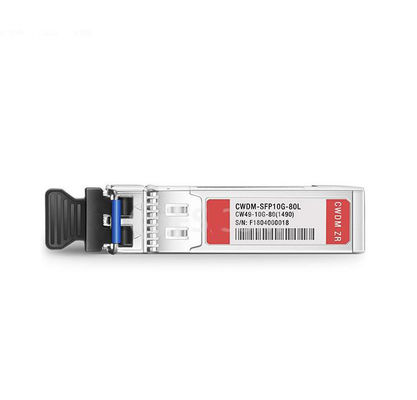

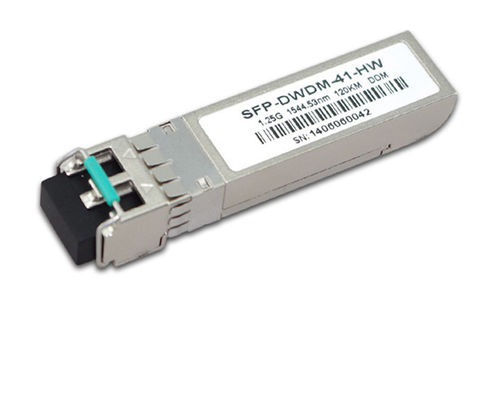

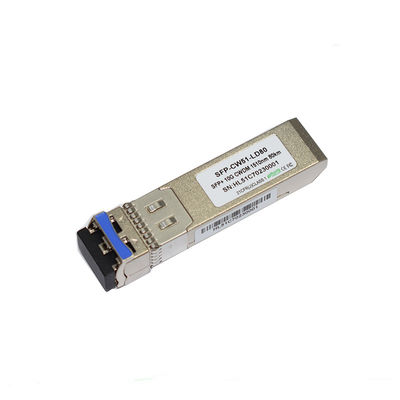

Product show
