পণ্যের বিবরণ:
প্রদান:
|
| Length: | 1m or customized | সাক্ষ্যদান: | RoHS,ISO9001 |
|---|---|---|---|
| Cable color: | 12 Colors | Connector: | SC,FC,LC |
| Ferrule End-face: | UPC,APC | Cable diameter: | 0.9mm/2.0mm/3.0mm |
| Return loss: | >60dB | Fiber Count:: | 4/6/8/12 Fibers |

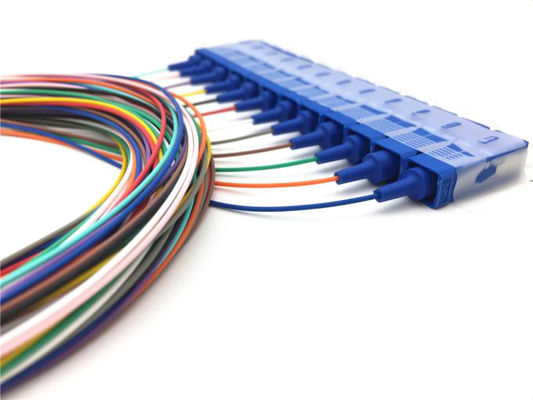

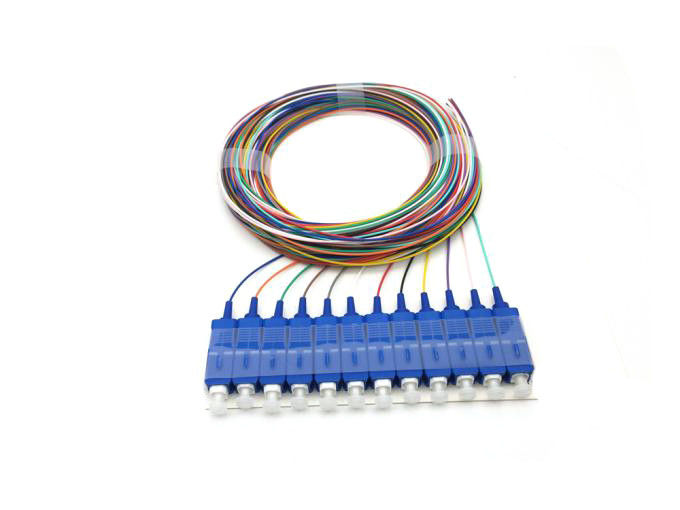

| বিশেষভাবে তুলে ধরা: | Unjacketed Fiber Optics Accessories,SC UPC Pigtail,900um Fiber Optics Accessories |
||
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
