পণ্যের বিবরণ:
প্রদান:
|
| Item: | ST-SC hybrid adapter | FC Side: | Female |
|---|---|---|---|
| SC Side: | Female | Shape: | Rectangle |
| FC Material: | Zinc or Copper alloy | SC Material: | Zinc or Copper alloy |
| Fiber type: | Singlemode / Mutilmode | Type: | Simplex |
| বিশেষভাবে তুলে ধরা: | SGS Fiber Optic Receptacle,SGS SC ST Receptacle,SGS Hybrid Optic Receptacle |
||

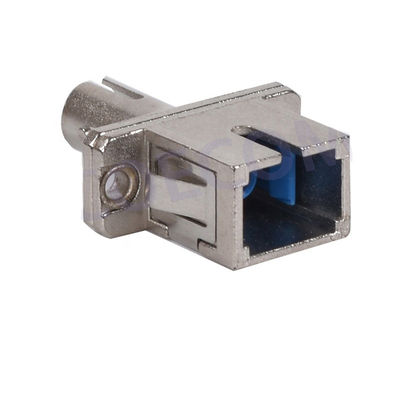

Female Hybrid SC ST SGS Fiber Optic Receptacle
ST Female to SC Female Hybrid SC-ST Simplex Fiber optic Adapter , Zinc or Copper alloy Metal material Coupler
Description:
Hybrid fiber optic adaptors allow users to convert from one connector type to another..
These adaptors are comprised of a polymer/Metal outer body and inner assembly fitted with a precision alignment mechanism. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.
We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.
Features:
Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Available without flanges or with flange for duplex, saving panel space
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS
Application:
Fiber optic transmission system
Fiber optic sensing
Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
Specification:
| TYPE | ROHS ST - SC Fiber Adapter Hybrid Optical Fiber Adapter Fiber Optic Adaptor, Low Insert Loss | |||||||||
| Product Type | FC or FC/D | ST | SC | LC | SMA | ST/SC | FC/SC | FC/ST | Utralow insertion loss (FC SC ST) |
|
| Insertion loss | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.1 | ≤0.5 | ≤0.4 | ≤0.5 | ≤0.1 | MM≤0.05 | SM≤0.1 |
| Repeated mating | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.05 | |
| Sleeve material | Mainly zirconia ceramic, phosphor bronze can be optional | |||||||||
| Plug and unplug (times) | ≥500 | |||||||||
| Insertion force (g) | 300-600 | |||||||||
| Operating Temperature (°C) | -40~+70 | |||||||||
| Storage Temperature (°C) | -55~+85 | |||||||||
| According Standrand | BelicoreTA-NWT-001209 | |||||||||
| Note | 1. Optical jumper connectors are similar to wire plugs,adptors are similar to outlets. 2. The key indicators of adaptor are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better. 3.The performance of ceramic sleeve is better than phosphorus bronze sleeve. |
|||||||||
Drawing and Pictures:
