| Model No.: | 1*6 CWDM | Wavelength: | 1270~1610nm |
|---|---|---|---|
| Material: | LGX Box | Type: | Mux or Demux |
| Polarization dependent loss: | ent loss: ≤0.2dB | Connector: | Simplex LC |
| Warranty: | 1 Year | Channel Uniformity: | : ≤0.6dB |
| বিশেষভাবে তুলে ধরা: | 1X6 WDM CWDM DWDM,1X6 CWDM,Multiplexer Mux CWDM module |
||

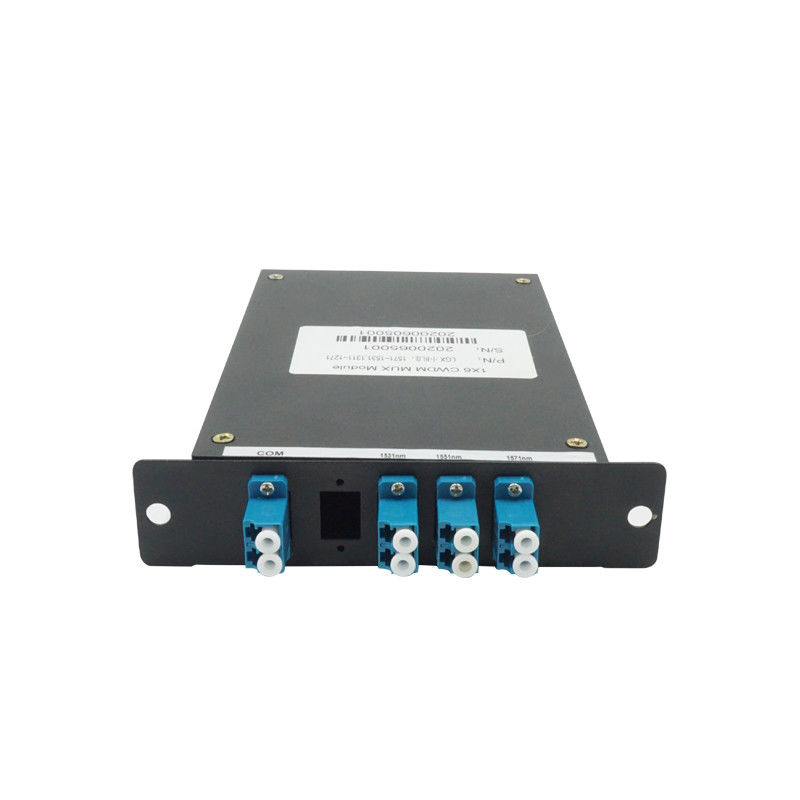

Simplex LC Multiplexer Mux 1X6 WDM CWDM DWDM Module
1X6 CWDM multiplexer mux demux CWDM module fiber optic telecom equipment
Description
1. Coarse wavelength division multiplexer (CWDM Mux/Demux) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging.
2. It provides low insertion loss, high channel isolation, wide passband, low temperature sensitivity and epoxy free optical path
Features
1. CWDM optical module adopts CWDM technology, which can combine optical signals of different
wavelengths through an external WDM, because it transmits through a single optical fiber, thus saving optical fiber resources.
2. At the same time, the receiver needs to use WDM to decompose the complex optical signal.
3. In addition, CWDM optical modules can be plugged into switch or router SFP ports.
Applications
CWDM optical modules are widely used in campus, data center, FTTH,1G and 2G fiber channels, gigabit Ethernet in MAN, security and
protection system and other fields.
Specification:
|
Parameter
|
4 Channel
|
8 Channel
|
16 Channel
|
18 Channel
|
|||||
|
Mux
|
Demux
|
Mux
|
Demux
|
Mux
|
Demux
|
Mux
|
Demux
|
||
|
Channel Wavelength(nm)
|
1270~1610/1271~1611
|
||||||||
|
Center wavelength Accuracy (nm)
|
±0.5
|
||||||||
|
Channel Spacing(nm)
|
20
|
||||||||
|
Channel Passband (@-0.5dB bandwidth (nm)
|
+/-7.5/+/-6.5
|
||||||||
|
Insertion Loss (dB)
|
≤1.5
|
≤2.5
|
≤3.5
|
≤3.5
|
|||||
|
Channel Uniformity (dB)
|
≤0.6
|
≤1.0
|
≤1.5
|
≤1.5
|
|||||
|
Channel Ripple (dB)
|
0.3
|
||||||||
|
Isolation(dB)
|
Adjacent
|
>30
|
|||||||
|
Non-adjacent
|
>40
|
||||||||
|
Insertion Loss(dB)
|
Express with filter
|
>30
|
|||||||
|
Express without filter
|
>12
|
||||||||
|
Inertion Loss Temperature Sensitivity (dB/℃)
|
<0.005
|
||||||||
|
Wavelength Temperature Shifting (nm/℃)
|
<0.002
|
||||||||
|
Polarization Dependent Loss(dB)
|
<0.1
|
||||||||
|
Polarization Mode Dispersion(ps)
|
<0.1
|
||||||||
|
Directivity (dB)
|
＞50
|
||||||||
|
Return Loss(dB)
|
＞45
|
||||||||
|
Maximum Power Handling (mW)
|
300
|
||||||||
|
Opterating Temperature (℃)
|
-40~+85
|
||||||||
|
Storage Temperature (℃)
|
-40~+85
|
||||||||
|
Package dimension (mm)(LGX box)
|
L155.5xW102(129)xH29
|
||||||||
