| Product name: | PLC Splitter with ABS box 1*8 | Package Type:=: | ABS Module |
|---|---|---|---|
| Type: | FTTH FTTB FTTX Network | Fiber Connector:=: | SC/apc, SC/pc |
| Configuration Type:=: | 1xN, 2xN | Input/Output Fi: | 0.9mm, 2.0mm, 3.0mm |
| বিশেষভাবে তুলে ধরা: | Upc Apc Optical Plc Splitter,1x8 Optical Plc Splitter,ABS Box Optical Plc Splitter |
||

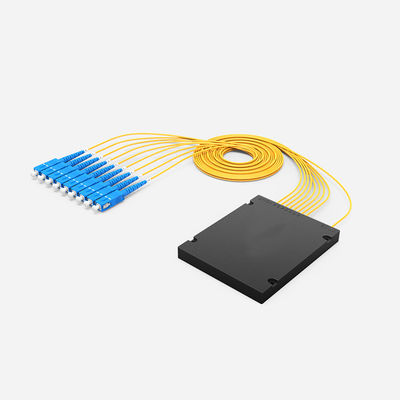

1650nm ABS Box 1x8 SC Upc Apc Optical Plc Splitter
FTTH FTTB 1x8 SC upc Apc Fiber Optic PLC Splitter with ABS Box 1260-1650nm
Description:
PLC Splitter (Planar Light-wave Circuit Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. PLC Splitter features guaranteed performance specifications and high reliability that surpass your requirements and is tailored for different applications and markets.
Application
♦ FTTX(FTTP,FTTH,FTTN.FTTC )
♦ Passive Optical Networks(PON)
♦ Local Area Networks(LAN)
♦ CATV systems
♦ Test equipments
Parameters
Type |
1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
| Operating wavelength(nm) | 1260-1650 | ||||||
| Insertion loss (dB) | Typical | 3.6 | 7.2 | 10.5 | 13.5 | 17 | 19.5 |
| Maximum | 4 | 7.5 | 11 | 14 | 17.2 | 21 | |
| Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2 |
| Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 |
| Maximum | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
| Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.3 |
| Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| Return loss (dB) | Minimum | 55/50 | |||||
| Directivity (dB) | Minimum | 55 | |||||
| Operating temperature (℃) | -20 to 85 | ||||||
| Storage temperature (℃) | -40 to 85 | ||||||
| Optical fiber type | SMF-28 Or customer required | ||||||
| Optical fiber length (m) | 1.2 or customize | ||||||
