পণ্যের বিবরণ:
প্রদান:
|
| Splitter: | 2:32,2:16 | Dimension: | φ230*550 |
|---|---|---|---|
| Cable diameter: | φ7-φ22 | Cable port: | 4 in ,4 out |
| Capacity of splice tray: | 24 Single fiber | Max qty of splice tray: | 6 |
| Max capacity: | 144 Single fiber | Material: | MPP |
| Sealing structure: | Heat shrinkable sealing structure silicon gum material | ||
| বিশেষভাবে তুলে ধরা: | Aerial Fiber Optic Enclosure,PLC Splitter Fiber Optic Enclosure,MPP fiber Optic Enclosure |
||

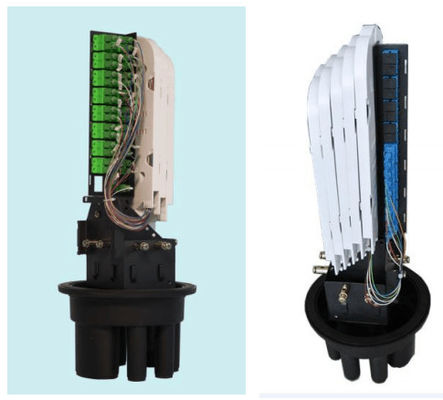

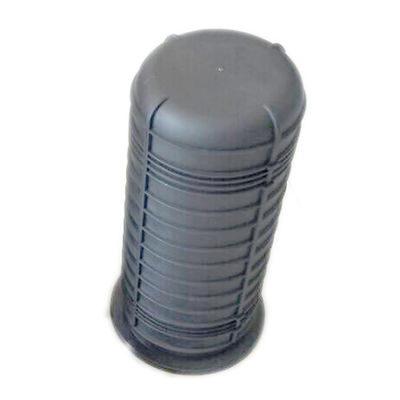

PLC Splitter IP65 Wall Mounted Aerial Fiber Optic Enclosure

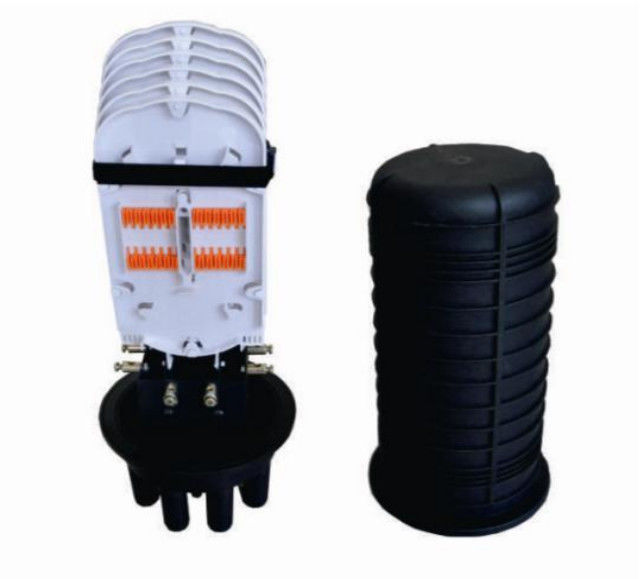

GJS-M7/RS Fiber Optic Dome Closure with PLC Splitter
DESCRIPTION
Application
A type of dome closure series, used for direct connection during optical fiber transmission process, and provides joint connection protection, with 6 small round cable holes and 1 large cable hole; heat sealing with heat shrinkable casing; can be used for overhead, pole, wall and buried installations. With good sealing performance, the simple installation and wide application range are the best choice for optical fiber connection.
Product Features
All functional indicators are in accordance with the national YD 814.1-2004 standard for distribution box.

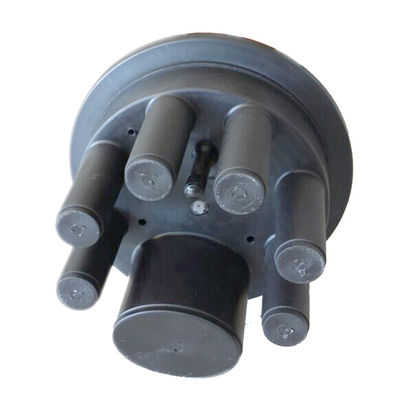

Four-in and four-out cable ports; there are 1 large and 6 small circular holes, which can enter and exit the Φ7~Φ22 optical cables.
The outer box body is made of high-strength engineering plastics, It has features of less weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
The splice tray is equipped with splicing slots and a PLC splitter holder, which can be configured at any time according to the needs of direct line or branch line connection.
Technical Index
Fiber radius of curvature: ≥40mm
Optical disk additional loss: ≤ 0.01dB
Temperature Range: - 40°C ~ + 65°C
Anti lateral pressure: ≥2000N / 10 cm
Shock resistance: ≥20N.m
Protection level: IP65
PRODUCT SPECIFICATION
| Type | GJS-M7/RS |
| Size(mm) | ￠230 * 320/440 |
| Cable diameter (mm) | ￠7～￠22 |
| Cable entrance | 4 in and 4 out |
| Splice tray capacity | 24 (single core) |
| Max quantity of splice tray | 6 |
| Max capacity | 144 (single core) |
| outer carton size(mm) |
540*485*465/4pcs |
| Case body | 1 set |
| pole connector | 2 pcs |
| Heat shrinkable tube (small) | 6 pcs |
| Heat shrinkable tube(oval) | 1 pc |
| Splicing sleeves ,(L=40mm) | according to the type |
| grounding wire(L=120mm) | 1 pc |
| branch card | 1 pc |
| Tin foil | 2 pcs |
| Stainless steel hose hoop buckle | 8 pcs |
