পণ্যের বিবরণ:
প্রদান:
|
| Product name: | Optical Distribution Frame /ODF | Type: | SC 12 core Rack Mount |
|---|---|---|---|
| Pigtail: | SC/FC/ST Pigtail options | Application: | Telecommunication |
| Material: | Cold rolled sheet | Return Loss: | 50dB |
| বিশেষভাবে তুলে ধরা: | 96 port ODF Optical Distribution Frame,rack mounted odf,19'' 96 Port odf |
||

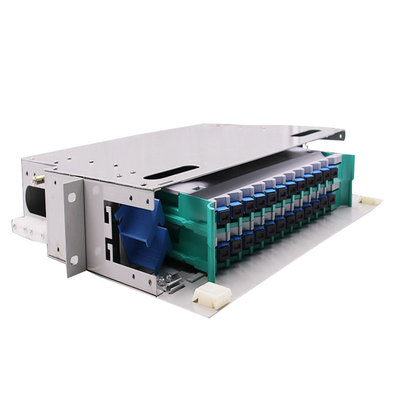

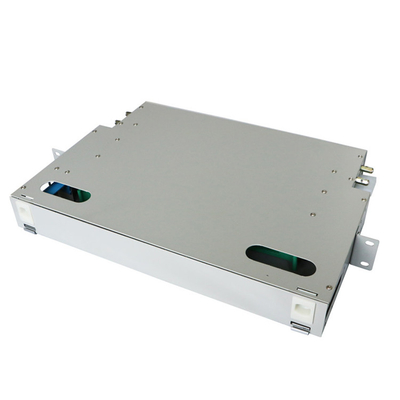

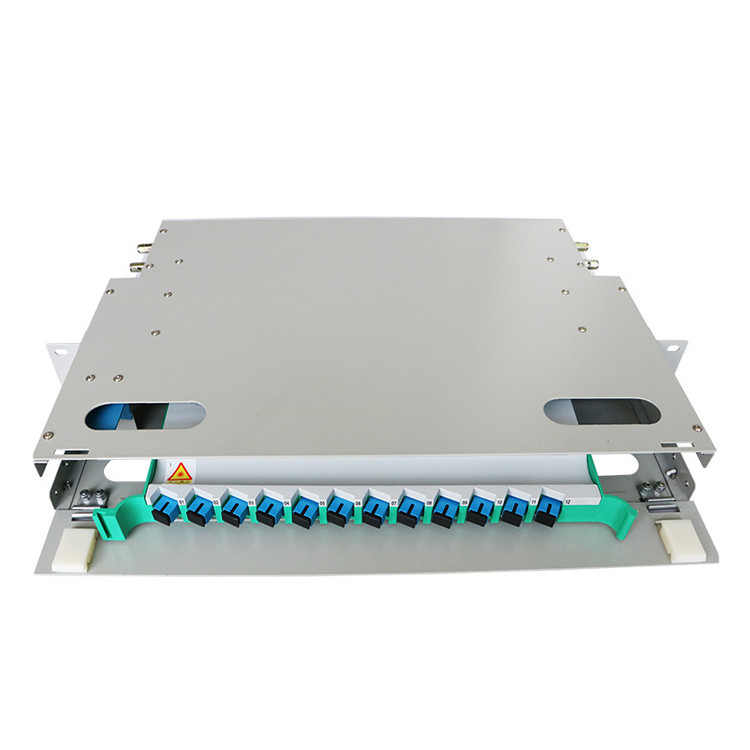

19'' Rack Mounted 96 Port ODF Optical Distribution Frame
19'' rack mounted ODF 8 /12 /24 /36/48/96 port core Optical Distribution Frame For Network
Description:
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.
Features:
1) Standard size, light weight and reasonable structure

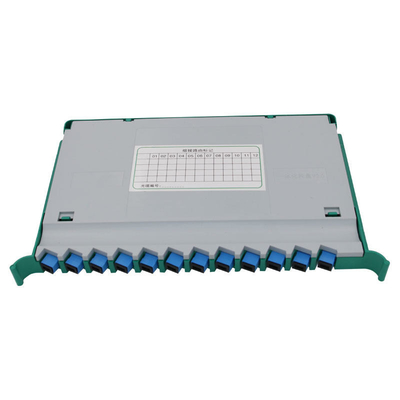

2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 12C ,24C, 36C, 48C, 72C ,96C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
| We support fiber capacity | 12/24/48/72/96/144 cores |
| Fiber Port | FC, SC, ST and LC |
| Number of ODF disks | 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
| Working temperature | -10 °C ~ +40 °C |
| Storage temperature | -25 ° C ~ +55 ° C |
| Relative humidity | ≤ 85% (+30 ° C) |
| Atmospheric pressure | 70Kpa~106Kpa |
| Nominal operating wavelength | 850nm, 1310nm, 1550nm |
| Insertion loss | ≤ 0.5dB |
| Return loss | PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
| Electrical strength | ≥3KV(DC)/1min without breakdown |
| Insulation resistance | ≥1000MΩ/500V (DC) |
| Life | ≥1000 times |
| Application range | Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
