| Product Name: | Transmitter Receiver QSFP-40G-SR4-C 850nm 100M | Use: | FTTX |
|---|---|---|---|
| Distance: | 100M | Wavelength: | 850nm |
| সাক্ষ্যদান: | CE/ROHS/ISO9001 | Data transfer rate: | 40Gbps |
| বিশেষভাবে তুলে ধরা: | SR4 SFP Optical Transceiver,40G QSFP+ SR4,40Gbps Optical Transceiver |
||
FTTX 40G QSFP+ SR4 850nm SFP Optical Transceiver
Fiber Optical Module 40G QSFP+ SR4 850nm Transceiver Optical Transmitter
Description
QSFP PSM IR4 are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and 40GbE PSM4. QSFP PSM IR4 is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
Features
· Full duplex 4 channel 1310nm parallel module
· Transmission data rate up to 11.3Gbit/s per channel
· SFF-8436 QSFP+ compliant
· Hot pluggable electrical interface
· Differential AC-coupled high speed data interface
· 4 channels 1310nm FP array
· 4 channels PIN photo detector array
· Maximum link length of 2km on G652 single mode fiber (SMF)
· Maximum power consumption 3.5W
· Housing isolated from connector ground
· Operating case temperature 0°C to +70°C
· 3.3V power supply voltage
· RoHS 6 compliant
Applications
· Infiniband Connectivity SDR/DDR/QDR
· 10/40 Gigabit Ethernet
· 2/4/8 Gbps Fiber Channel
· Data Centers and Storage Arrays
40G QSFP Transceiver
| Part Number | Product Description |
| CY-QSFP-SR4 | 850nm, 40G, 150m, 0ºC ~ +70ºC |
| CY-QSFP-CSR4 | 850nm, 40G, 400m, 0ºC ~ +70ºC |
| CY-QSFP-IR4 | 1310nm, 40G, 2KM, 0ºC ~ +70ºC |
| CY-QSFP-LR4 | 1310nm, 40G, 10km, 0ºC ~ +70ºC |

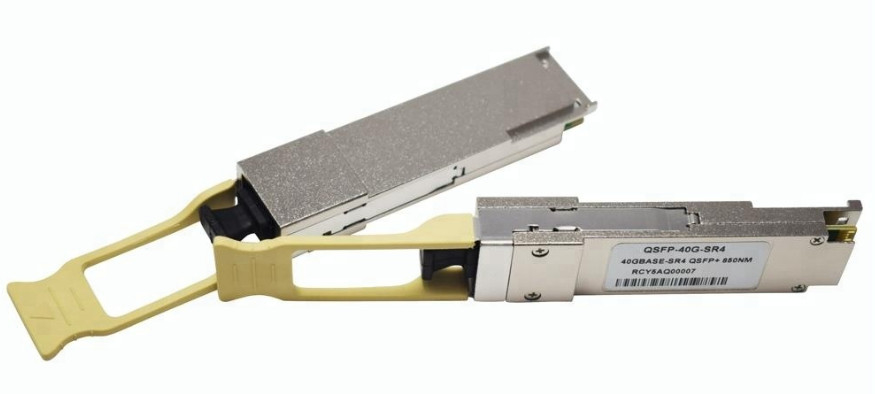

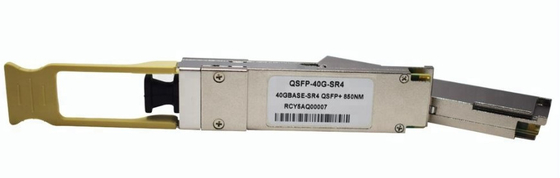

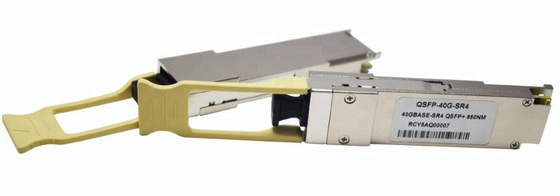

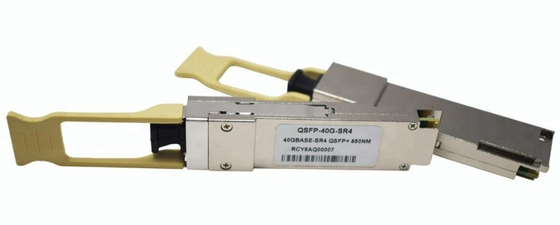

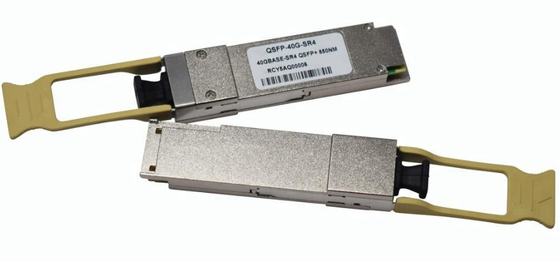

Product Photos
